N-Tier Application with Automated CI/CD Pipeline

A complete 3-tier web application with FastAPI backend, Streamlit frontend, and PostgreSQL database, featuring automated CI/CD pipeline using Docker, Kubernetes, Helm, GitHub Actions, and ArgoCD.

🏗️ Architecture

architecture-beta
    group fs(cloud)[3 Tier Architecture]
    group ui(internet)[Frontend] in fs
    group api(internet)[Backend] in fs

    service client(server)[Streamlit] in ui
    service db(database)[PostgreSQL] in api
    service server(server)[FastAPI] in api

    client:R <--> L:server
    db:L <--> R:server

📁 Project Structure

.
├── .github/workflows/main.yaml     # CI/CD Pipeline
├── app/                           # FastAPI Application
├── client/                        # Streamlit Application
├── helm/                          # Helm Charts
├── kubernetes/                    # K8s Manifests
├── docker-compose.yml             # Local Development
├── Dockerfile.server              # API Docker Image
├── Dockerfile.client              # UI Docker Image
├── argocd-application.yaml        # ArgoCD Application
└── pyproject.toml                 # Python Dependencies

🚀 Manual Deployment Guide

1. Python Environment Setup with UV

Install UV (if not already installed):

# macOS using Homebrew (recommended)
brew install uv

# macOS/Linux using installer
curl -LsSf https://astral.sh/uv/install.sh | sh

# Windows
powershell -c "irm https://astral.sh/uv/install.ps1 | iex"

# Using pip
pip install uv

Setting up UV (Python's Package Manager):

# Initialize UV project
uv init --name n-tier --app

# Create virtual environment
uv venv --python 3.13

# Activate environment (Linux/macOS)
source .venv/bin/activate

# Install dependencies
uv sync

Run The Application locally:

Run API(FastAPI)

uv run uvicorn app.main:app --reload --host 0.0.0.0 --port 8000

Run Streamlit application
```
uv run streamlit run main.py
```

2. Docker Operations

Build Docker Images

# Build FastAPI server image
docker build -f Dockerfile.server -t <dockerhub-user-name>/fastapi-server:latest .

# Build Streamlit client image
docker build -f Dockerfile.client -t <dockerhub-user-name>/streamlit-client:latest .

Push to DockerHub/ghcr

# Login to DockerHub
docker login -u <username(dockerhub/ghcr.io)>

# Push images
docker push <dockerhub/ghcr.io-user-name>/fastapi-server:latest
docker push <dockerhub/ghcr.io-user-name>/streamlit-client:latest

Test with Docker Compose

Update the username in the docker-compose file if you want then execute the following commands:

# Start application stack
docker compose up -d

# View logs
docker compose logs -f

# Stop and cleanup
docker compose down

Access Points:

3. Kubernetes Deployment (OrbStack)

Deploy with Kubectl

# Create namespace
kubectl apply -f kubernetes/namespace.yaml

# Deploy all services
kubectl apply -f kubernetes/

# Check deployment status
kubectl get pods -n fastapi-app
kubectl get services -n fastapi-app

# Port forward for local access
kubectl port-forward -n fastapi-app svc/client-service 8501:8501
kubectl port-forward -n fastapi-app svc/api-service 8000:8000

Cleanup

# Delete all resources
kubectl delete -f kubernetes/

# Delete namespace
kubectl delete namespace fastapi-app

4. Helm Deployment

Deploy with Helm

# Install application
helm install n-tier-app ./helm

# Upgrade deployment
helm upgrade n-tier-app ./helm

# Check status
helm status n-tier-app
kubectl get pods -n fastapi-app

Cleanup

# Uninstall Helm release
helm uninstall n-tier-app

# Delete namespace if needed
kubectl delete namespace fastapi-app

5. ArgoCD Setup

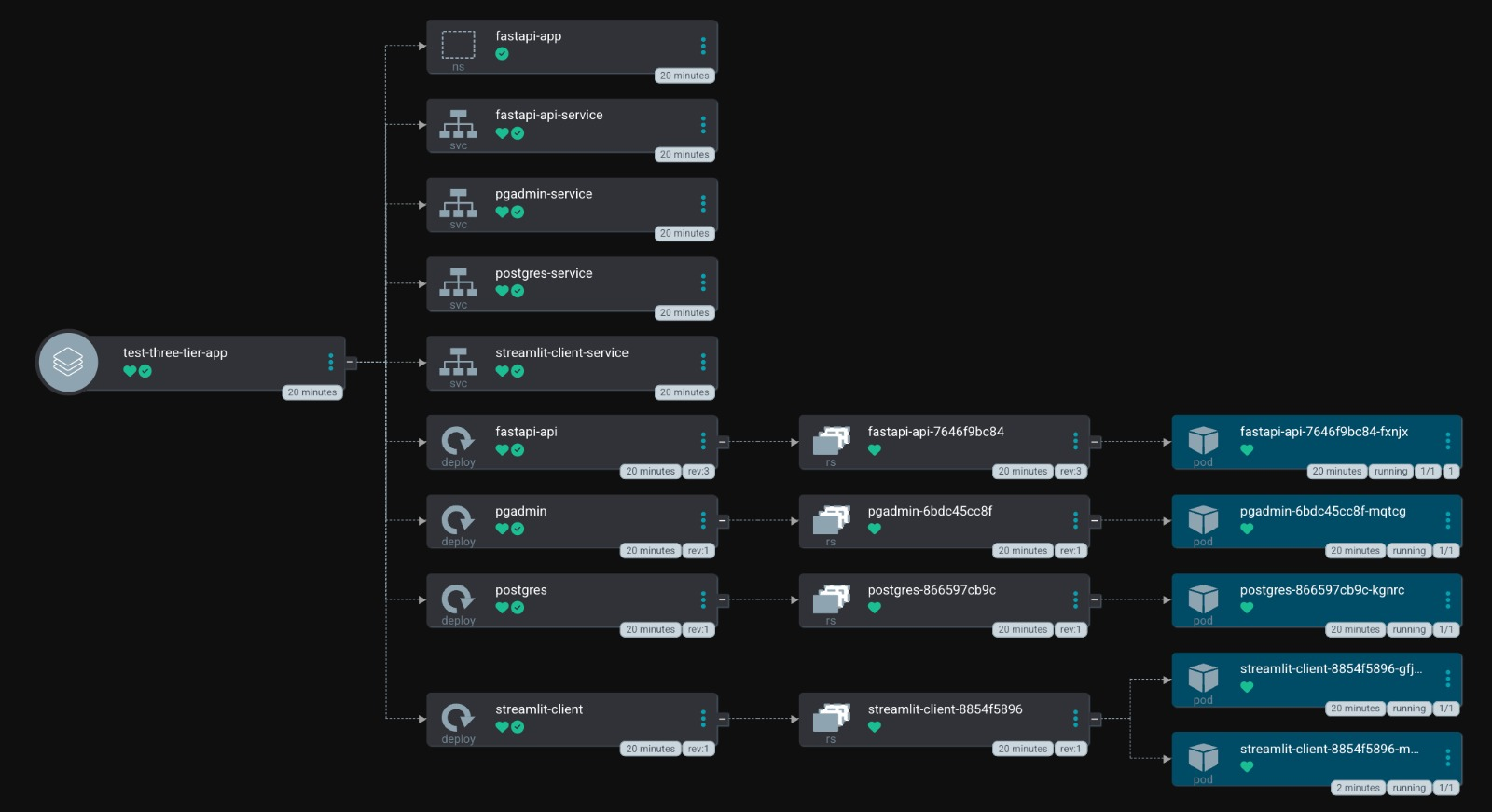

argocd setup

Install ArgoCD

# Create ArgoCD namespace
kubectl create namespace argocd

# Install ArgoCD
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml

# Wait for pods to be ready
kubectl wait --for=condition=available --timeout=300s deployment/argocd-server -n argocd

Access ArgoCD

# Port forward ArgoCD server
kubectl port-forward svc/argocd-server -n argocd 8080:443

# Get admin password
kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d

ArgoCD Access: https://localhost:8080

Username: admin
Password: (from command above)

Deploy Application via ArgoCD

# Apply ArgoCD application
kubectl apply -f argocd-application.yaml

# Sync application
argocd app sync test-three-tier-app

Cleanup ArgoCD

# Delete application
kubectl delete -f argocd-application.yaml

# Uninstall ArgoCD
kubectl delete -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/install.yaml
kubectl delete namespace argocd

🔄 Automated CI/CD Pipeline

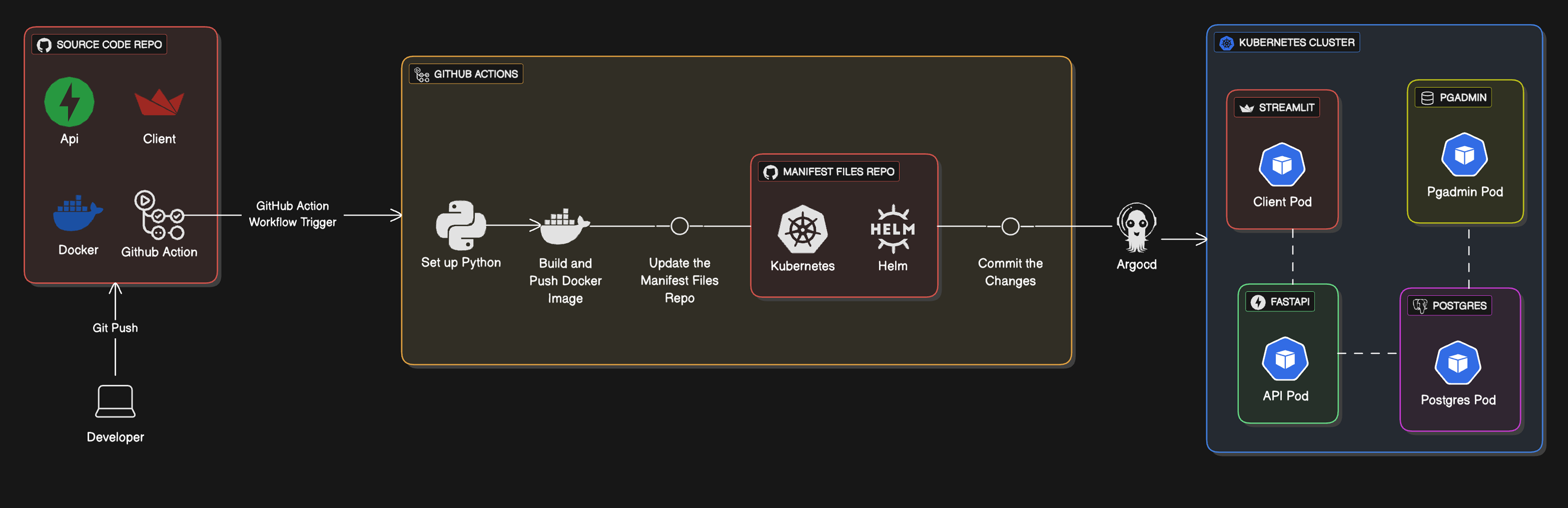

CI/CD Flow Diagram

Pipeline Features

Continuous Integration:
- Automated Docker image builds
- Automatic tagging with commit SHA
- DockerHub registry push
- Automatic Helm values update
Continuous Deployment:
- GitOps approach with ArgoCD
- Auto Sync with Updated Helm values
- Self-healing deployments
- Rollback capabilities

Pipeline Triggers

Triggers on push to main branch
Builds both FastAPI and Streamlit images
Updates Helm chart with new image tags
ArgoCD automatically syncs changes to cluster

Required Secrets

Configure these secrets in GitHub repository settings:

DOCKERHUB_USRNAME=your_dockerhub_username
DOCKERHUB_PSWD=your_dockerhub_password

🛠️ Technology Stack

Frontend: Streamlit
Backend: FastAPI
Database: PostgreSQL
Containerization: Docker
Orchestration: Kubernetes
Package Management: Helm
CI/CD: GitHub Actions
GitOps: ArgoCD
Local K8s: OrbStack

📝 Development Workflow

Local Development: Use UV for dependency management
Testing: Docker Compose for integration testing
Deployment: Kubernetes with Helm charts
Production: Automated CI/CD with ArgoCD

🔍 Monitoring & Debugging

# Check application logs
kubectl logs -f deployment/api-deployment -n fastapi-app
kubectl logs -f deployment/client-deployment -n fastapi-app

# Check ArgoCD application status
kubectl get applications -n argocd
argocd app get test-three-tier-app

# Monitor resource usage
kubectl top pods -n fastapi-app

Note

Ensure OrbStack or another local Kubernetes solution is running before executing Kubernetes commands.
