Data Engineering Pipeline Architecture

Overview

The Data Engineering Pipeline is the core engine that processes raw results data into actionable insights, powering the OuSpark analytics system.

Pipeline Design

• Implemented as 14 sequential stages (Stage 0 to Stage 13) representing Extraction, Transformation, Loading, Syncing, and Caching processes
• Each stage is exposed as a FastAPI standalone microservice
• Pipeline maintains a development PostgreSQL database for local processing before syncing to production

Stages Summary

Stage	Description
Stage 0	Ultra-fast HTML scraping from OU website (10k+ results in ~5 min)
Stage 1	Extract, clean and load data into development PostgreSQL
Stages 2-11	Analytics computation: rankings, credits, CGPAs, demographics, semester, subject, college, and department stats
Stage 12	Synchronize processed data with production Supabase PostgreSQL
Stage 13	Flush and prewarm Redis cache with updated analytics

Pipeline Automation

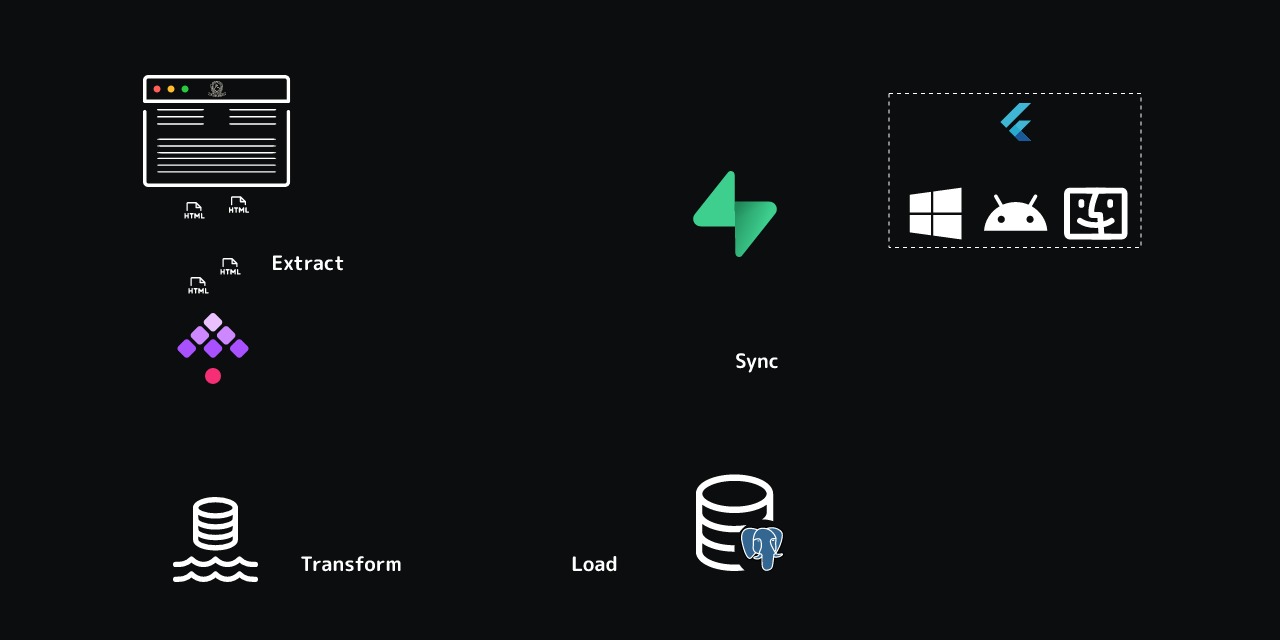

• Automated execution of pipeline stages using Kestra (YAML-configured workflows) preferred due to UI and maintainability advantages

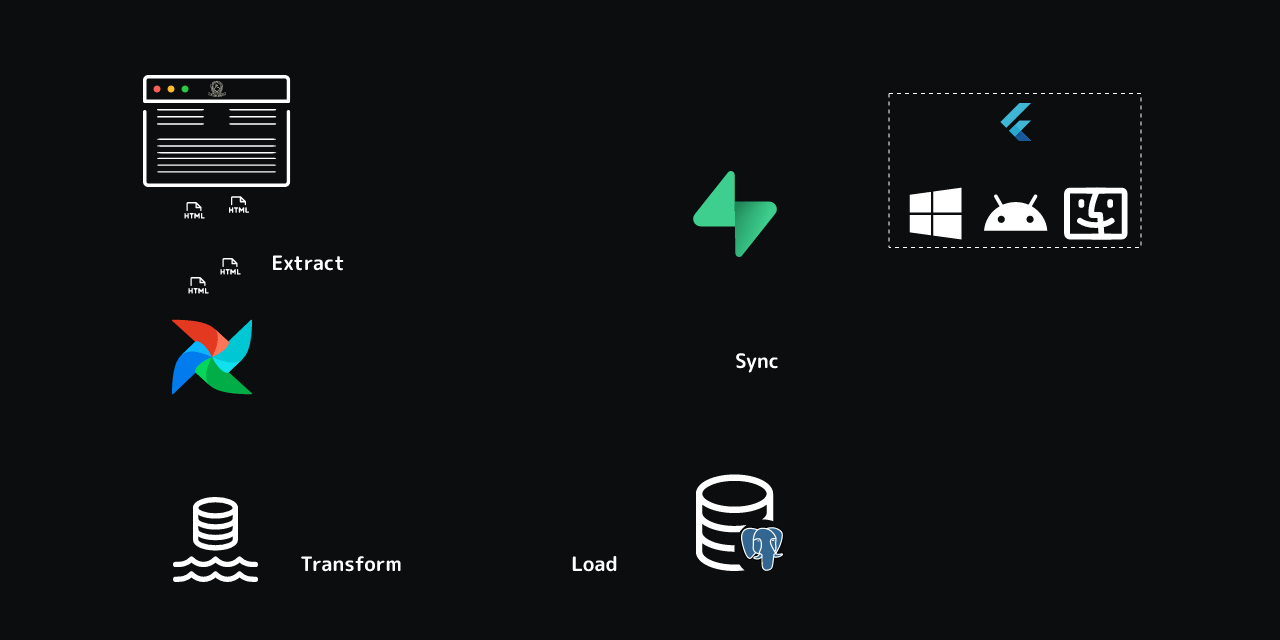

• Also supports Apache Airflow for DAG-based orchestration
• All services containerized using Docker and linked via Docker Compose

Pipeline Workflow Diagram

sequenceDiagram
participant Scraper as Stage 0 Scraper
participant ETL1 as Stage 1 ETL
participant Compute as Stages 2-11 Analytics
participant DevDB as Dev PostgreSQL DB
participant Sync as Stage 12 Sync
participant ProdDB as Production Supabase DB
participant RedisCache as Stage 13 Redis Cache
Scraper->>ETL1: Scraped HTML data
ETL1->>DevDB: Cleaned data loaded
ETL1->>Compute: Trigger computations
Compute->>DevDB: Updated analytics
DevDB->>Sync: Sync data
Sync->>ProdDB: Production DB updated
ProdDB->>RedisCache: Cache prewarm

Performance Outcomes

• Entire pipeline runs end-to-end in approximately 9 minutes compared to over 1 hour previously
• Automation eliminates human errors and manual intervention
• Scalability enabled by containerization and parallelizable API architecture

---
